Why Our In-house Galvanizing Matters

Faster Delivery

Faster production of cable trays and urgent orders mean that in-house galvanizing allows for on-demand galvanizing, eliminating the need to wait for outsourced processing and shortening the overall delivery cycle by over 30%.

Fully Controllable

Controllable Quality Throughout the Process, Enhanced Corrosion Protection: Strict control over pickling, fluxing, and galvanizing time and temperature ensures a uniform zinc layer with strong adhesion.

Meet The Requirements

Meets the mandatory requirements of large-scale petroleum, chemical, and subway projects for hot-dip galvanized zinc layers exceeding ≥65μm, 85μm, and 100μm.

Reduced Costs

Eliminating the profits, management fees, and transportation costs of outsourced galvanizing plants significantly reduces the cost per ton of cable trays.

Own Production Line

In-house Hot-Dip Galvanizing Production Line: Guaranteed Price, Quality, and Delivery Time

Promotional Video

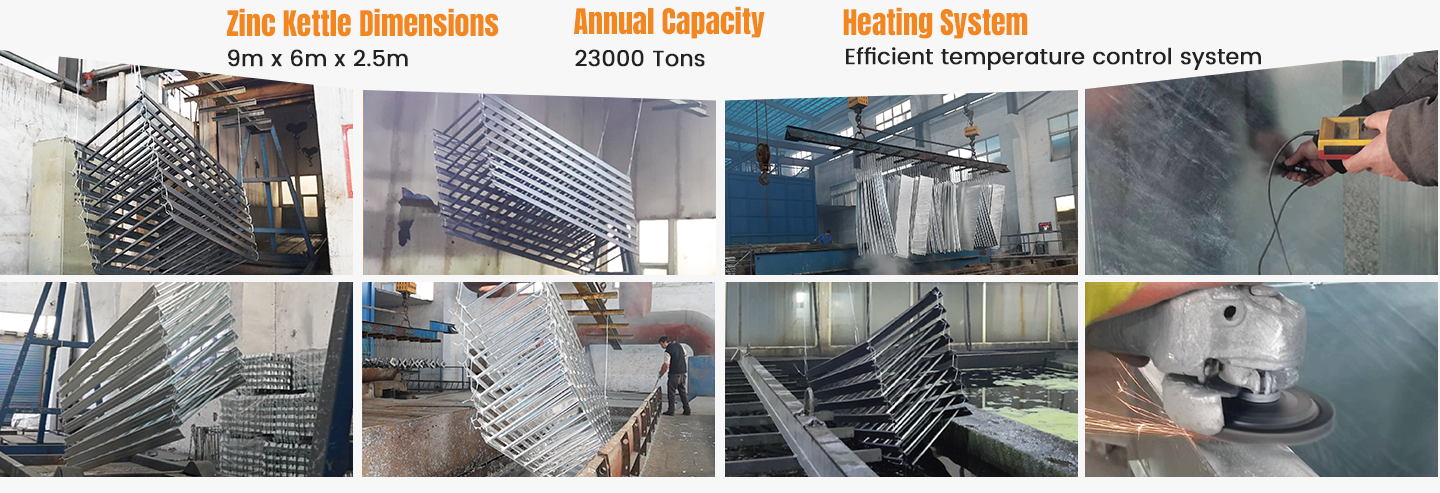

Advanced Facilities & Capacity

Standards & Quality Control

Fully compliant with ISO 1461, ASTM A123, and GB/T 13912

PROFESSIONAL SPIRIT

This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.This area can be customized to add text, the length of the text is customized, does not affect the operation of the entire site.

Pre-Treatmen

Thoroughly acid pickling ensures adhesion.

Zinc Layer Testing

Use precision digital thicknessgauges for multi-point detection.

Uniformity Check

Ensure no zinc nodules, no exposedblack, and a smooth surface without residual zinc.

Zinc Purity

Use high-grade zinc ingots with a pu-rity of 99.995%.

The Galvanizing Process

A brief summary of the hot-dip galvanizing production process: Degreasing → Pickling → Water washing → Fluxing → Hot-dip galvanizing → Passivation → Post-treatment → Inspection and shipment

Degreasing

Immerse in a high-temperature alkaline solution to remove oil and cutting fluid from the cable tray surface.

Purpose: To ensure adhesion for subsequent pickling and galvanizing.
Pickling

Immerse in a hydrochloric acid solution to remove rust and scale.

Key Points: Acid concentration and time must be controlled to prevent over-corrosion.
Water Rinsing

Rinse 2-3 times with clean water to remove acid and impurities.

Purpose: To prevent acid from being carried into the zinc bath, contaminating the zinc bath, and producing zinc slag.
Flux Treatment

Immerse in a zinc chloride + ammonium chloride solution and dry.

Function: Prevents rust recurrence after pickling; forms a protective film upon immersion in the zinc bath, resulting in a more uniform zinc layer.

Hot-dip Galvanizing

Immerse the cable tray in molten zinc at approximately 420℃.
Metallurgical Reaction: Steel and zinc combine to form an alloy layer + pure zinc layer.
Control: Immersion time and lifting speed determine zinc layer thickness.
Passivation

Forms a chemical conversion film, making the zinc layer more resistant to oxidation, acids, alkalis, and salt spray.
Post-treatment

Removes zinc residue, zinc nodules, and burrs. Ensures a smooth appearance and accurate dimensions.
After Sales Project

Inspection, Packaging, and Warehousing Inspection Items: Appearance; Zinc layer thickness (national standard generally ≥65μm)
Adhesion; Packaging and shipment after dimensional accuracy is qualified.
