As a premier manufacturer and supplier of advanced cable routing solutions, we present the 50mm Height Wire Mesh Cable Tray. Engineered for high-capacity installations, this open-grid routing system streamlines complex wiring projects for industrial and commercial contractors. Procuring these robust trays in large quantities ensures your infrastructure developments remain on schedule, structurally sound, and strictly within budget.
Optimized 50mm profile accommodating versatile routing requirements
Open architecture delivering superior thermal management for dense wiring
Rapid, tool-minimal installation process reducing on-site labor hours
Fully compliant with global safety, quality, and environmental standards

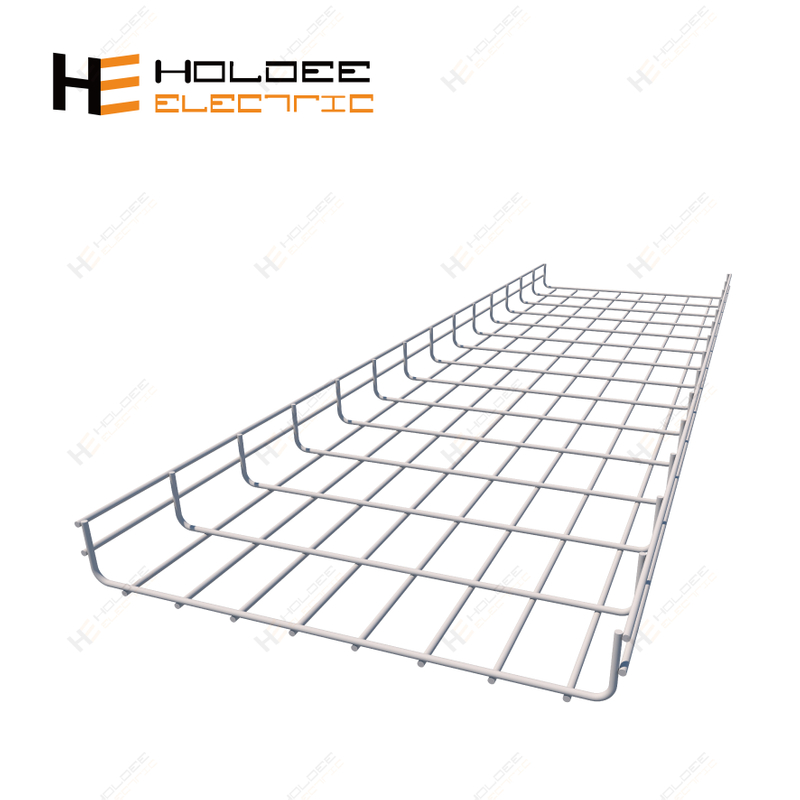

The 50mm Height Wire Mesh Cable Tray is meticulously crafted to transform chaotic wiring networks into structured, highly efficient pathways. Running your hands along the structural grid, you will immediately notice the smooth, rounded wire construction—a deliberate engineering choice that eliminates sharp edges, safeguarding delicate cable jackets from abrasions during rapid pulling operations. The robust metallic finish, whether the sleek sheen of electrolytic polishing or the textured resilience of hot-dip galvanization, speaks volumes about its industrial-grade craftsmanship. By adopting this open-wire architecture, project managers can drastically reduce the time spent on complex routing configurations. The tray’s lightweight framework belies its exceptional structural integrity, allowing installation teams to effortlessly maneuver and modify the pathways directly on the job site. This means no more waiting for custom-fabricated bends or junctions; your crew can simply cut and shape the grid to navigate around unexpected architectural obstacles. Ultimately, this cable management solution breathes life into densely packed server rooms and sprawling manufacturing floors by preventing catastrophic heat buildup, ensuring that critical data and power lines operate at peak performance without the risk of thermal degradation.
| Specification | Details |
|---|---|
| Height | 50mm (2") |
| Width | 50mm / 100mm / 150mm / 200mm / 300mm / 400mm / 450mm / 500mm / 600mm |
| Standard Length | 3000mm (10 ft) |
| Mesh Grid Size | 50mm x 100mm (2" x 4") |
| Wire Diameter | 3.5mm - 6.0mm |
| Material | Carbon Steel (Q235) / Stainless Steel (SS304, SS316, SS316L) |
| Surface Finish | Electro-Galvanized / Hot-Dip Galvanized / Powder Coated / Electrolytic Polishing |
| Safety Design | Smooth, rounded wire construction |
| Application Environment | Indoor dry environment, outdoor, high corrosion environment, data centers, food processing, etc. |
| Certifications | CE, UL, RoHS, ISO9001, NEMA |
Elevate your infrastructure projects with a routing system designed to maximize operational efficiency and structural reliability. Our wire mesh trays are engineered to address the most demanding challenges faced by modern facility managers and electrical contractors, ensuring a seamless integration into any architectural layout.
The open-grid design eliminates heat traps, allowing cool air to circulate freely around densely bundled power and data cables. This natural ventilation significantly lowers operating temperatures, thereby reducing the energy costs associated with active cooling systems.
Featuring a meticulously smoothed wire surface, the tray ensures that sensitive fiber optic and copper cables glide into place effortlessly. This attention to detail prevents snagging or jacket tearing, preserving the integrity of your critical communication lines.
Eliminate the heavy reliance on pre-fabricated fittings. The wire grid can be easily snipped and bent using standard bolt cutters to create precise tees, crosses, and elevation changes right where you need them, adapting instantly to site-specific conditions.
Unlike solid-bottom alternatives, the 50mm x 100mm mesh matrix prevents the buildup of dust, moisture, and industrial debris. This self-cleaning characteristic maintains a pristine routing environment, which is especially critical in food processing and cleanroom facilities.
Facility maintenance teams can instantly identify, trace, and troubleshoot specific cable runs without the arduous task of removing heavy covers. This visual transparency drastically reduces system downtime during routine maintenance or network upgrades.
Understanding the multifaceted demands of large-scale electrical installations is crucial for selecting the right infrastructure components. This 50mm height wire mesh tray system is engineered across several core dimensions to guarantee long-term performance across exceptionally diverse environments.
Constructed from premium Carbon Steel (Q235) and Stainless Steel (SS304/SS316/SS316L), this system offers unparalleled durability. With surface treatments ranging from Electro-Galvanized for indoor commercial spaces to Hot-Dip Galvanized and Powder Coated for harsh outdoor or highly corrosive marine and chemical environments, the structural integrity remains uncompromised against rust and degradation.
The meticulously spaced open-mesh architecture delivers unmatched air circulation. This actively prevents thermal accumulation, lowering the operating temperature of high-capacity cables and significantly extending their lifespan—making it the ultimate choice for high-density data centers and telecommunication hubs.
Weighing approximately one-fifth of traditional enclosed solid trays, this system allows for effortless single-person handling. Field technicians can rapidly cut and manipulate the grid to form complex T-junctions, crosses, and sweeping bends, drastically cutting down labor costs and accelerating overall project timelines.
Fused through advanced medium-frequency direct current welding, every intersection boasts immense shear strength. The smooth, rounded edge design not only protects cable insulation but also reinforces the tray's mechanical load-bearing capacity and seismic resilience under heavy, continuous cable weight.
Standardized at a 50mm height, the system offers an expansive range of widths from 50mm up to 600mm. This scalability accommodates varying cable volumes while the open top allows for effortless future additions or removals, effectively future-proofing your facility for inevitable technological upgrades.

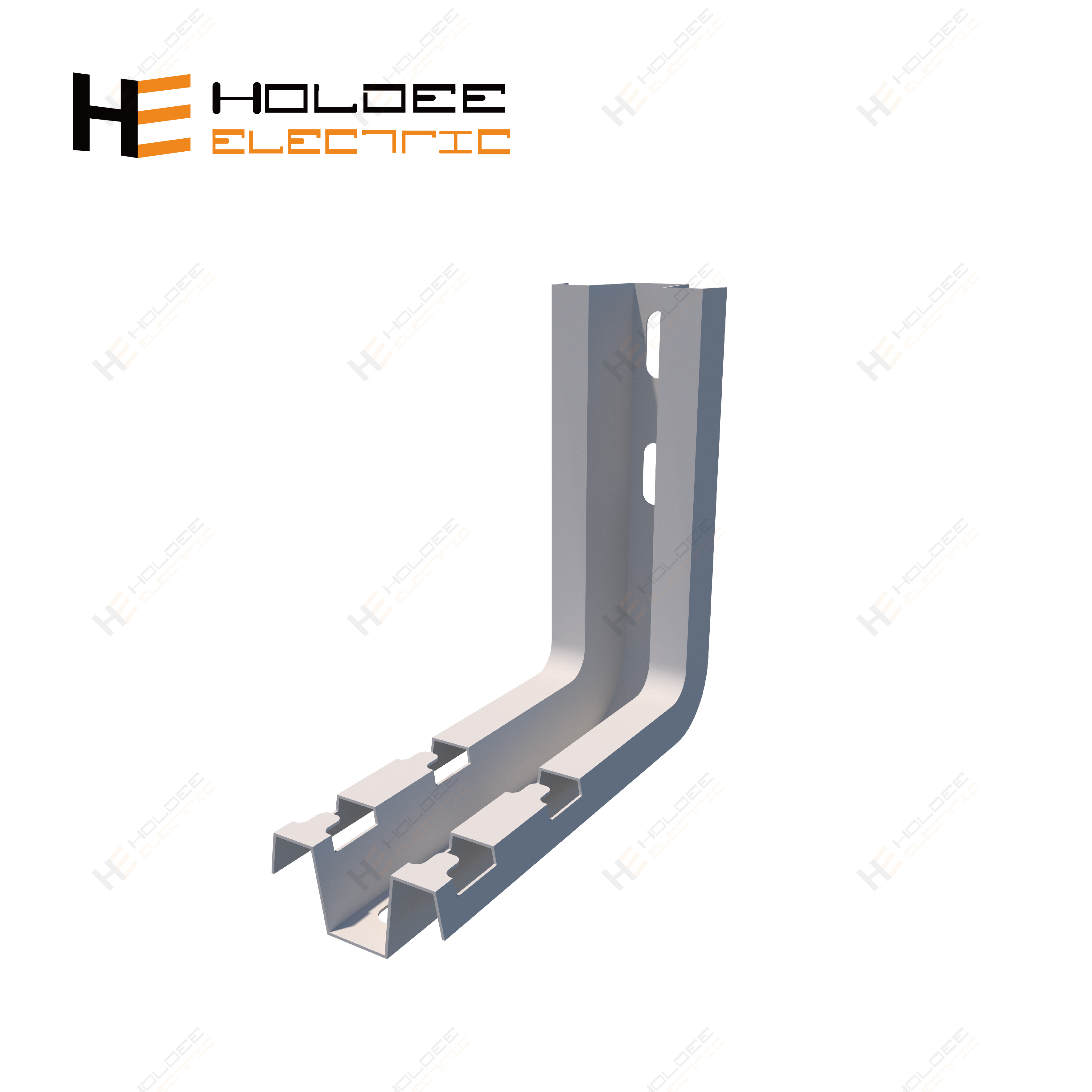

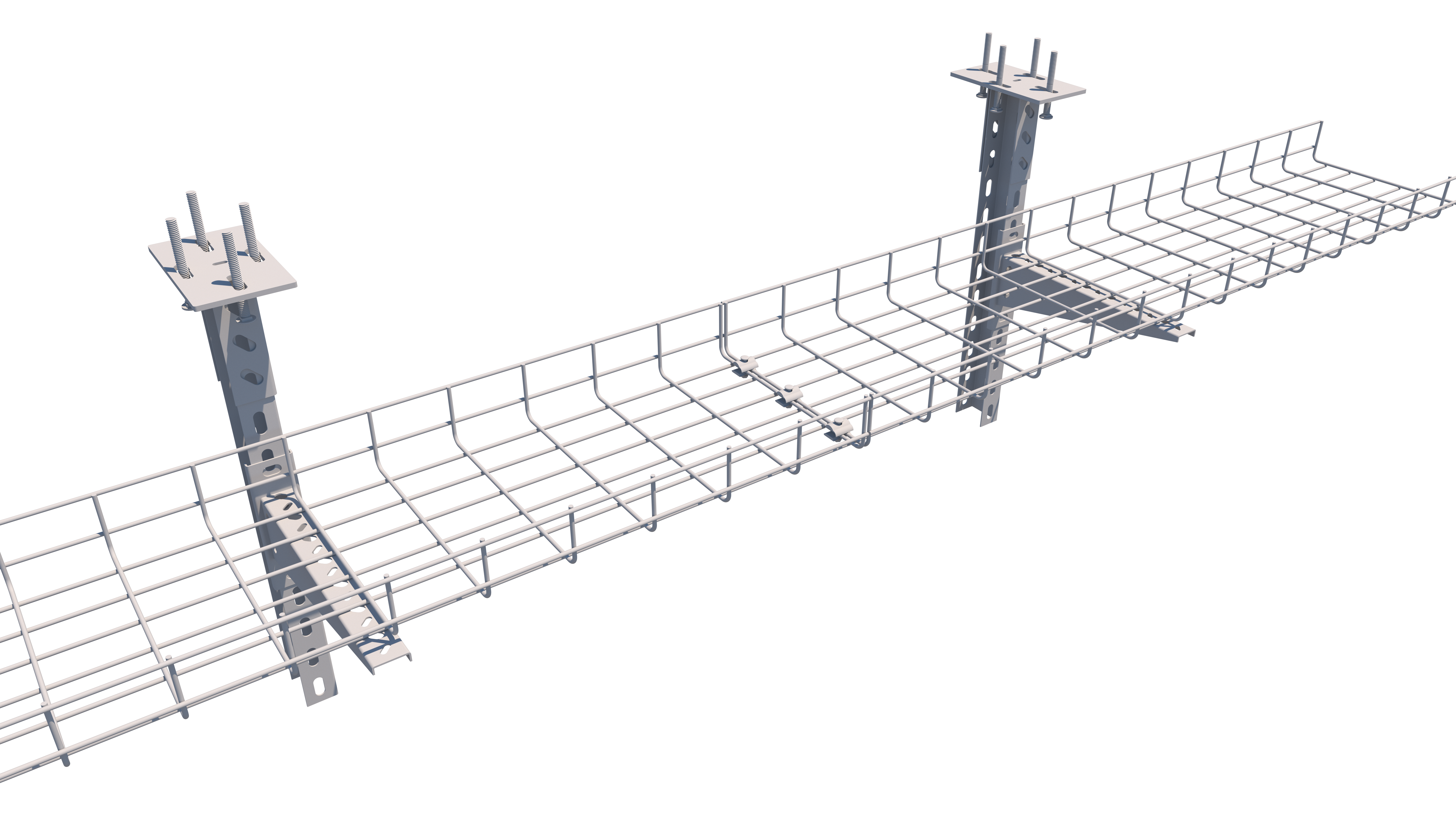

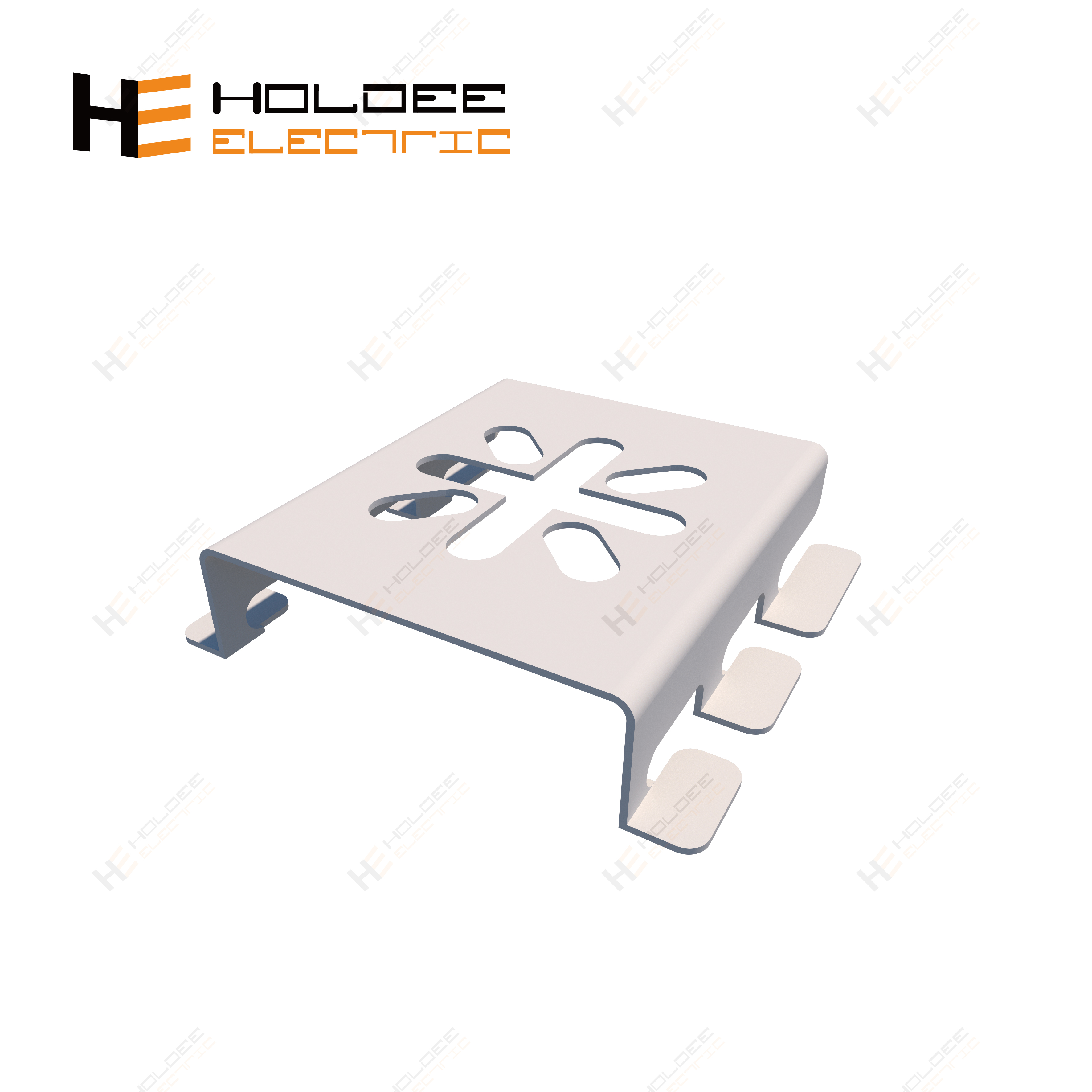

Delivered as a complete, ready-to-deploy solution, the system includes tool-less fast connectors, divider strips, grounding lugs, drop-outs, and versatile ceiling or wall-mounting brackets. This comprehensive ecosystem ensures a cohesive, standardized, and structurally sound installation from end to end.
Manufactured under rigorous ISO9001 quality control protocols, the trays hold prestigious international certifications including CE, UL, RoHS, and NEMA. This guarantees strict compliance with the safety and regulatory requirements of massive industrial facilities, commercial skyscrapers, and government infrastructure projects.
Selecting the right manufacturing partner is just as critical as selecting the right hardware. We provide unparalleled value to large-scale contractors, distributors, and procurement specialists by focusing on consistent quality, vast production capabilities, and dedicated engineering support.
Operating highly automated welding and coating lines, we guarantee stable, uninterrupted supply chains for massive infrastructure developments, ensuring you never face project delays due to material shortages.
Every batch of mesh trays undergoes rigorous metallurgical testing, weld-strength analysis, and salt-spray corrosion testing before leaving our facility, guaranteeing flawless performance upon arrival at your site.
Our technical team collaborates closely with project managers to provide precise load calculations, layout optimizations, and custom surface finish recommendations based on your specific environmental challenges.
We utilize optimized packaging and container-loading strategies to maximize shipping density, significantly reducing freight costs and ensuring safe, deformation-free transit to any destination worldwide.
By utilizing eco-friendly electrolytic polishing and RoHS-compliant materials, we help you meet stringent green building standards and reduce the overall carbon footprint of your construction projects.
Navigating the technical specifications of wire mesh cable management can raise important questions during the procurement process. Below are detailed answers to the most common inquiries we receive from engineering and procurement professionals.
Despite its lightweight profile, the high-tensile steel wire and reinforced medium-frequency welding provide a load capacity that rivals and often exceeds standard perforated trays of similar dimensions. The structural grid distributes weight evenly, preventing localized sagging even under maximum cable fill ratios.
Electro-galvanized finishes are optimized for controlled, dry indoor environments such as commercial offices and climate-controlled data centers. For high-humidity, outdoor, or industrial applications, we strongly recommend specifying our Hot-Dip Galvanized or Stainless Steel (SS316L) variants for optimal, long-lasting corrosion resistance.

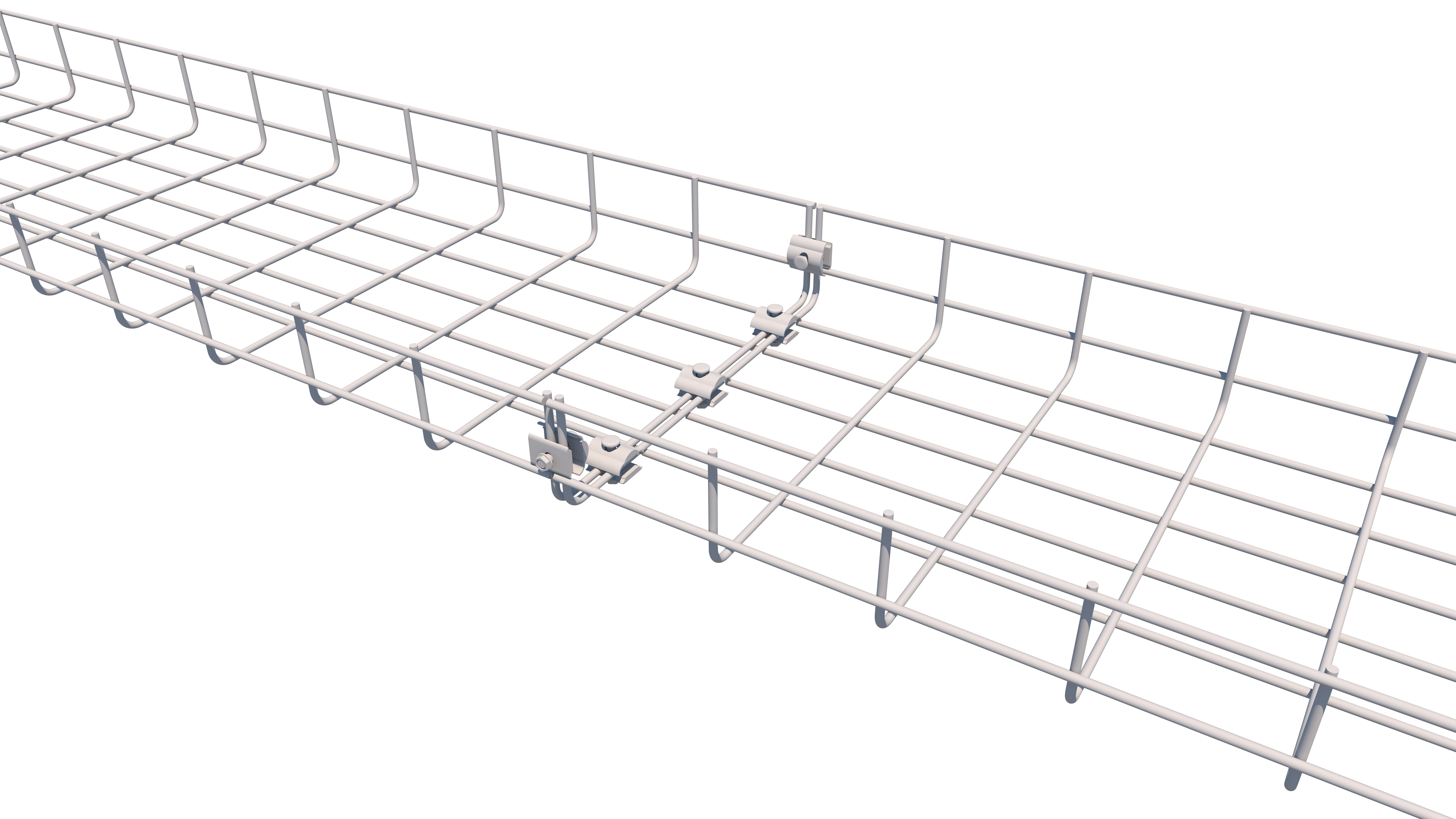

No proprietary tools are necessary. Field modifications can be swiftly executed using a standard heavy-duty offset bolt cutter. Once cut, the edges should be filed smooth, and our specialized tool-less fast connectors can be used to securely join the customized sections in minutes.

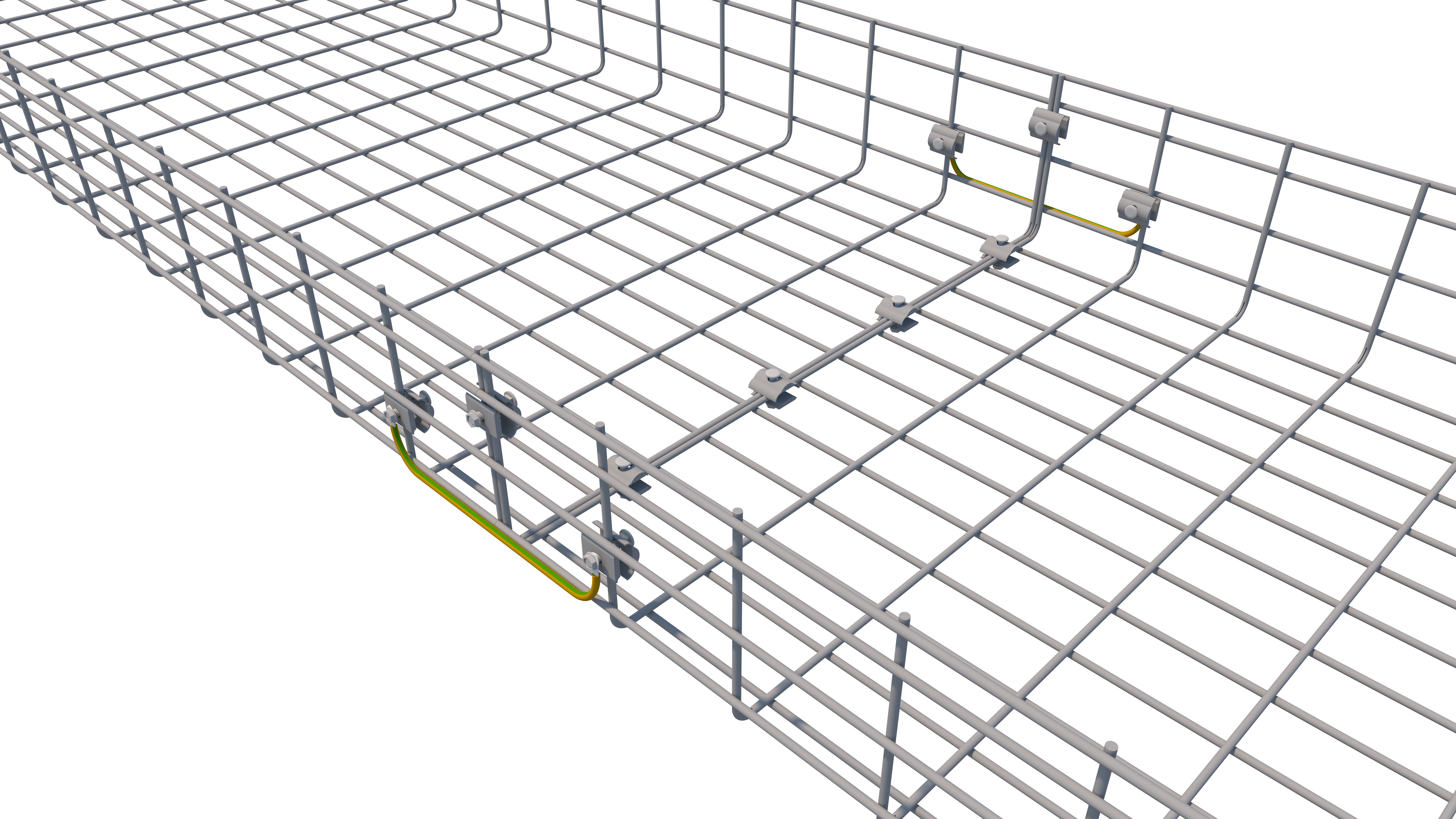

The continuous welded steel construction offers excellent inherent electrical continuity. When paired with our specialized grounding lugs and installed according to NEMA guidelines, the system provides a highly reliable grounding path that safely dissipates fault currents, protecting both personnel and equipment.
Absolutely. We supply custom divider strips that easily clip directly into the mesh grid. This allows you to safely segregate high-voltage power cables from sensitive data and communication lines within the exact same tray, preventing electromagnetic interference (EMI) and ensuring strict compliance with electrical wiring codes.
