As a leading manufacturer and premium supplier of industrial-grade cable management solutions, we present the Cover for Horizontal Cross Bend. Engineered for maximum structural integrity, this protective component ensures seamless integration into complex electrical layouts.
Manufactured for heavy-duty industrial and commercial applications.
Supplied directly from advanced fabrication facilities to ensure strict quality control.
Designed to shield critical wiring from environmental degradation and mechanical impact.

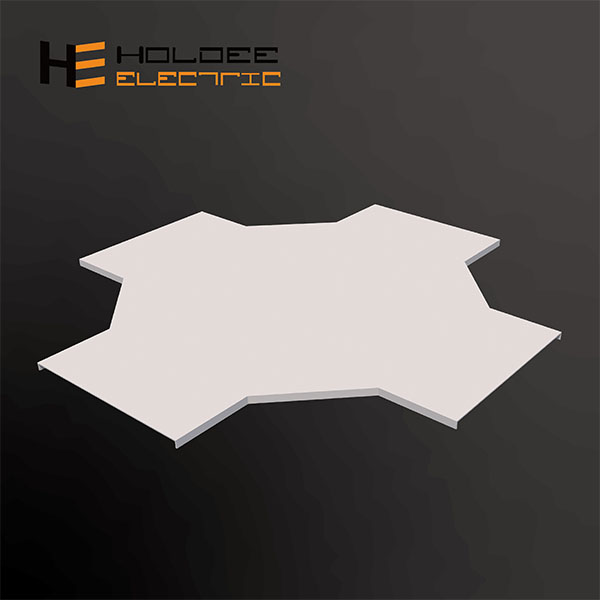

The Cover for Horizontal Cross Bend serves as an indispensable shield for your intricate cable routing networks, specifically engineered to cap four-way intersection points with absolute precision. When handling complex electrical frameworks, the physical security of your wiring is paramount. This robust cover delivers a solid, metallic resonance upon installation, indicating a perfectly flush fit that instantly locks out environmental hazards. By enveloping the vulnerable junction points of your cable trays, it actively prevents the accumulation of corrosive dust, abrasive debris, and moisture that can compromise cable insulation over time. The smooth, meticulously finished surface not only provides a sleek, professional aesthetic to your facility's infrastructure but also guarantees that personnel and sensitive cables are protected from sharp edges during maintenance operations.
Crafted to withstand the rigorous demands of harsh industrial climates, the dense molecular structure of the chosen alloys provides exceptional rigidity. This means your operational downtime is drastically reduced, as the internal wiring remains pristine and undisturbed regardless of external temperature fluctuations or physical impacts. Ultimately, integrating this specialized cover into your infrastructure translates to lower maintenance costs, extended lifespan for critical power lines, and a significantly enhanced safety profile for your entire facility.
To ensure precise alignment with your project requirements, detailed technical parameters are provided below. As a dedicated manufacturer and supplier, we maintain strict adherence to these specifications, guaranteeing that every unit integrates flawlessly into your existing cable management infrastructure. The table outlines the core material options, dimensional ranges, and certified performance standards.
| Product Name | Cover For Horizontal Cross Bend / Cable Tray Fitting Cover |
|---|---|
| Material | Carbon Steel / Stainless Steel (304/316) / Aluminum / FRP (Fiberglass Reinforced Plastic) |
| Surface Finish | Hot Dip Galvanized (HDG) / Pre-Galvanized / Powder Coated / Bright |
| Width | 100mm - 1000mm (Customizable) |
| Thickness | 1.0mm - 3.0mm |
| Bend Angle/Type | 45° / 90° / Cross (4-Way) / Tee |
| Cover Style | Flat Cover / Flanged Style Cover |
| Application | Cable Tray System Protection (Indoor & Outdoor) |
| Certifications | ISO 9001, CE, NEMA Compliant |
Engineered to elevate the reliability of your electrical systems, this cover incorporates advanced structural features that directly address common installation and maintenance challenges. Every contour is designed with operational efficiency in mind.
Exceptional Structural Rigidity: The heavy-gauge fabrication prevents sagging or warping under heavy environmental loads, ensuring the cross intersection remains entirely sealed over decades of use.
Rapid Deployment Mechanism: Designed for intuitive alignment, the cover drops perfectly into place over horizontal cross bends, significantly reducing labor hours during large-scale facility upgrades.
Advanced Edge Treatment: Utilizing precision CNC machinery, all perimeters are meticulously deburred. This smooth-touch finish eliminates the risk of slicing cable jackets during pulling operations.
Thermal and UV Shielding: By completely enclosing the tray intersection, the cover acts as a formidable barrier against accelerated aging caused by direct sunlight and localized temperature spikes.
Optimized Weight-to-Strength Ratio: Despite its robust protective capabilities, the engineered profile minimizes unnecessary bulk, reducing the overall static load on your supporting brackets and suspension systems.
Selecting the right foundation is critical for long-term infrastructure survival. We provide a comprehensive spectrum of premium substrates, including marine-grade Stainless Steel (304/316), lightweight Aluminum, advanced Fiberglass Reinforced Plastic (FRP), and high-yield Carbon Steel. These materials are heavily fortified through specialized surface treatments.
Hot Dip Galvanized (HDG): Creates a thick, impenetrable zinc-iron alloy layer that thrives in highly corrosive marine and heavy industrial atmospheres.
Pre-Galvanized Finish: Offers a uniform, bright appearance with excellent rust inhibition for controlled indoor environments.
Powder Coated Resilience: Delivers a tough, electrostatically applied barrier that resists chipping, scratching, and aggressive chemical vapors.
Chemical and Acid Immunity: Specifically engineered to prevent structural degradation in petrochemical plants and wastewater treatment facilities.
A protective cover is only effective if it aligns flawlessly with your existing framework. This component is meticulously calibrated to offer universal compatibility with major tray systems, ensuring you do not need to overhaul your current setup to achieve superior protection.
Expansive Width Range: Spanning from a compact 100mm to a massive 1000mm, accommodating everything from delicate fiber optic runs to heavy-duty power transmission cables.
Variable Thickness Options: Available in 1.0mm to 3.0mm gauges, allowing engineers to balance weight constraints with required impact resistance.
Universal System Integration: Perfectly matches the profiles of ladder, trough, and solid-bottom cable trays, eliminating awkward gaps at four-way intersections.
Seamless Joint Alignment: Engineered tolerances ensure that the cover sits flush against adjoining straight sections and bends, creating a continuous, uninterrupted protective corridor.
The architectural geometry of the cover is focused entirely on maximizing the defensive perimeter around your vulnerable cable junctions. By offering distinct structural profiles, we empower project managers to dictate the exact level of environmental sealing required for their specific site conditions.
Flanged Style Security: Features downward-facing lips that overlap the tray walls, creating a labyrinth seal that aggressively repels wind-driven rain and settling dust.
Flat Cover Simplicity: Offers a low-profile, streamlined aesthetic ideal for tight overhead spaces where clearance is severely restricted.
Insulation Preservation: By blocking direct exposure to harsh ultraviolet radiation and abrasive airborne particulates, the cover prevents the embrittlement of cable sheathing.
Pest and Debris Exclusion: Forms a rigid physical barrier that stops rodents, birds, and falling industrial debris from nesting or damaging the sensitive electrical pathways.
Superior protection originates from an uncompromising fabrication process. As a dedicated manufacturer, our production floors utilize state-of-the-art automation to transform raw metal and composite sheets into precision-engineered shielding components. Every unit undergoes rigorous validation before dispatch.
CNC Precision Forming: Advanced computer-numerical-control press brakes ensure that every 90-degree angle and cross-section matches your exact dimensional requirements without deviation.
Zero-Burr Guarantee: Intensive mechanical deburring processes result in a tactilely smooth finish, safeguarding both your installation crew's hands and your expensive cable jackets.
Load-Bearing Integrity: The structural design is tested to withstand substantial static loads, ensuring the cover will not buckle or collapse under unexpected weight or heavy snowfall.
Global Standard Compliance: Manufactured under strict ISO 9001 quality management protocols and fully compliant with NEMA standards, guaranteeing reliable performance across international jurisdictions.
We understand that modern architectural and industrial designs rarely conform to standard templates. As a highly adaptable supplier, we offer profound customization capabilities to ensure your cable management system perfectly mirrors your unique project blueprints.
Bespoke Dimensional Engineering: Capable of fabricating non-standard widths, unique intersection angles, and specialized drop-outs based entirely on your proprietary CAD drawings.
Color-Coded Powder Coating: Match the cover to specific corporate color schemes or utilize high-visibility safety colors to designate high-voltage or critical communication pathways.
Material Hybridization: Consult with our metallurgical experts to select the exact alloy composition required for extreme temperature fluctuations or unique chemical exposures.
Rapid Prototyping: Dedicated engineering teams work closely with your procurement department to deliver accurate prototypes, ensuring perfect fitment before mass production commences.
The versatility and ruggedness of the Cover for Horizontal Cross Bend make it a critical asset across a vast array of demanding sectors. Wherever power and data must flow uninterrupted, this component stands as the first line of defense against operational failure.
Data Centers & Telecommunications: Maintains a pristine, dust-free environment for fragile fiber optic networks, ensuring zero signal degradation.
Heavy Industrial & Power Plants: Shields high-amperage power cables from corrosive byproducts, extreme heat, and mechanical impacts inherent in manufacturing zones.
Renewable Energy Sectors: Provides exceptional UV and weather resistance for vast solar farm arrays and high-altitude wind turbine installations.
Transportation Hubs: Ensures the continuous, safe operation of critical lighting and signaling cables in underground subways, railway stations, and airport terminals.
Commercial Complexes: Delivers a clean, architecturally pleasing finish for exposed ceiling designs in modern shopping centers and corporate headquarters.
Securing your electrical infrastructure requires a partner who understands the high stakes of industrial construction and facility management. As a premier manufacturer and direct supplier, we bypass traditional supply chain bottlenecks to deliver unparalleled value, precision, and reliability directly to your project site.
Unmatched Production Capacity: Our expansive manufacturing facilities are equipped to handle massive volume requirements, ensuring your large-scale developments stay strictly on schedule.
Direct-from-Manufacturer Pricing: By eliminating intermediary markups, we optimize your project's procurement budget without ever compromising on the raw material quality or engineering precision.
Expert Technical Consultation: Our in-house engineering teams provide comprehensive support, from initial blueprint analysis to post-installation troubleshooting, ensuring flawless integration.
Stringent Quality Assurance: Every batch undergoes exhaustive metallurgical and dimensional testing, guaranteeing that the product you receive performs exactly as specified in the harshest environments.
Global Logistics Mastery: Leveraging a robust distribution network, we ensure secure, weather-protected, and timely delivery of your critical components to any site worldwide.
To assist your engineering and procurement teams in making informed decisions, we have compiled detailed responses to the most common technical inquiries regarding our cross bend covers.
The structural design of the cover plays a vital role in its defensive capabilities.
The flanged style features a downward-angled lip that acts as an overhang, preventing water and dust from slipping into the tray through the side gaps.
It provides enhanced structural rigidity, making it highly recommended for outdoor applications subject to high winds or heavy rainfall.
The flat cover, while slightly less weather-resistant, is optimized for tight indoor spaces where vertical clearance is at an absolute premium.
Yes, we offer specialized coatings tailored to aggressive atmospheres.
For petrochemical or wastewater facilities, we highly recommend our FRP (Fiberglass Reinforced Plastic) options or 316 Stainless Steel.
We can also apply heavy-duty, chemical-resistant powder coatings over hot-dip galvanized steel to provide a dual-layer defense mechanism.
Our engineering team will review your site's specific chemical exposure profile to recommend the most durable substrate and finish combination.
As a direct manufacturer, we maintain highly agile production lines to accommodate custom requests swiftly.
Standard configurations are typically processed and ready for dispatch within standard industry timeframes due to our extensive raw material inventory.
For non-standard widths (e.g., specific dimensions between 100mm and 1000mm) or unique bend angles, the engineering and fabrication cycle is highly optimized.
Exact timelines are provided during the initial quotation phase, ensuring your project management team can schedule installation phases accurately.
Our covers are engineered with universal compatibility in mind.
They are designed to conform to standard NEMA dimensions, ensuring a flush fit with the vast majority of ladder, trough, and solid-bottom trays on the market.
To guarantee a perfect match, we request the exact outer dimensions and lip profiles of your existing trays during the ordering process.
If your current system utilizes proprietary or legacy dimensions, our customization service can easily adapt the cover's mounting points and width to suit.
Maintaining the physical integrity of the cover under vibration or wind load is critical.
We supply a variety of heavy-duty mechanical fasteners, including stainless steel cover clamps and heavy-duty wrap-around bands.
For areas experiencing high mechanical vibration, such as near heavy machinery or transit lines, we recommend bolted configurations to ensure the cover remains permanently locked in place.
The fastening mechanisms are designed for rapid engagement, allowing maintenance crews to quickly remove and reinstall the covers during routine cable inspections.
